For most conventional towers, point front and bottom fans inward and rear and top fans outward. That creates a simple path through the components. It is a starting layout, not a guarantee: filters, radiators, fan speed and restrictive panels determine how much air actually moves.
Quick answer
Start with cool air entering through filtered front or bottom openings, crossing the graphics card and CPU area, and leaving through the rear or rear-most top opening. Keep the CPU cooler and case fans working in the same general direction. Then run the same repeatable workload before and after any change and compare temperatures, fan speed and noise.
- Conventional fan: air usually enters the open blade side and exits past the frame struts.
- Best evidence: molded airflow arrows or the manufacturer’s diagram override visual rules.
- Dust control: favor filtered intake and avoid strong unfiltered negative pressure.
- Upgrade rule: do not fill every mount until measurements show a reason.
How to find PC fan airflow direction
Examine the edge of the fan before installing it. Many models have two small molded arrows: one indicates blade rotation and the other indicates airflow. Corsair documents this convention for its fans. When arrows are absent, a conventional axial PC fan normally draws air through the visually open side and pushes it toward the side where support arms hold the motor hub.
That visual shortcut has an important exception. Reverse-blade fans are designed to show the cleaner face while moving air in the opposite direction from a conventional model. Product photography can therefore mislead. Check the exact model page, or power the fan safely and hold a light strip of tissue near each side without allowing it to touch the blades.
| Mount | Useful starting direction | Why | When to reconsider |
|---|---|---|---|
| Front | Intake | Feeds outside air across the main components | Solid or highly restricted front panel |
| Bottom | Intake | Can feed the graphics card directly | Unfiltered floor opening or blocked clearance |
| Rear | Exhaust | Completes a front-to-rear path behind the CPU area | Unusual inverted case layout |
| Top | Rear-most exhaust first | Removes air after it crosses the components | Radiator or case design specifies another path |
| Side | Usually intake | Can supply the GPU or radiator with outside air | It creates recirculation or fights another intake |
Plan one clean path, not a collection of fans
Noctua recommends considering the whole system, including the direction of a tower CPU cooler. A front intake, CPU cooler blowing toward the rear, and rear exhaust cooperate. Turning the CPU cooler around or placing a strong intake immediately behind it can make two fans compete over the same air.
The phrase “heat rises” is often used to justify a layout, but natural convection is weak beside forced airflow from spinning fans. Position, restriction and delivered airflow matter more. The practical goal is to prevent hot exhaust from looping back into an intake while supplying the GPU, CPU cooler, motherboard power stages and storage with outside air.
- 1. Map openings: mark which mounts have mesh, filters, radiators or solid panels.
- 2. Choose intake: use the least obstructed filtered opening that feeds the hot components.
- 3. Choose exhaust: place it after the components, normally at the rear or rear top.
- 4. Align coolers: make the CPU cooler and radiator airflow support that route.
- 5. Measure: keep the layout only if repeatable thermal and acoustic results improve.
Interpretation: fan orientation is only step three of the physical system. A correct-looking layout can still underperform when the intake is starved by a panel or filter.
Positive, neutral and negative pressure
Noctua defines positive pressure as more air being pulled into the case than expelled, negative pressure as the reverse, and neutral pressure as a rough balance. Positive pressure can reduce dust entering through unfiltered gaps; negative pressure can remove warm air effectively but may draw dust through every opening. Neutral pressure is a compromise.
Three intake fans do not automatically beat two exhaust fans. A filtered 120 mm intake at a quiet speed may deliver less air than a less-restricted 140 mm exhaust at a higher speed. Radiators and dense filters add resistance. Treat fan count as a diagramming aid, then tune speed and inspect where dust accumulates.
Airflow fan or static-pressure fan?
An unobstructed exhaust mainly needs to move air. A radiator, tightly spaced mesh or dense filter resists that flow, so a fan designed to maintain pressure against restriction is more appropriate. Manufacturer labels such as “airflow” and “static pressure” are useful categories, but compare the complete fan curve, noise specification and connector type when the data are available.
Also verify size, thickness, PWM or DC control, header capacity and cable reach. A larger fan can often move a given amount of air at a lower rotational speed, but only if the case supports it and the panel lets it breathe. Never overload a motherboard header with splitters; use the board manual’s current limit or a powered hub.
| Symptom | First check | Useful experiment |
|---|---|---|
| GPU is hot but CPU is comfortable | Front/bottom intake reaching the GPU | Temporarily increase the nearest filtered intake |
| CPU cooler fan is very loud | Cooler and rear fan point the same way | Align the path and retest the same workload |
| Dust appears around unfiltered gaps | Possible strong negative pressure | Raise filtered intake or reduce exhaust speed |
| Temperatures improve with side panel removed | Intake restriction or recirculation | Clean filters and test a clearer intake path |
| A new fan changes nothing | Mount may be outside the useful path | Move it or lower its speed to reduce noise |
Worked example: a conventional gaming tower
Consider a mesh-front tower with three front mounts, one rear mount, two top mounts, an air CPU cooler and a graphics card. Begin with two front intakes and one rear exhaust. Point the CPU cooler toward the rear. Leave the forward top mount empty initially because an exhaust there can remove fresh air before it reaches the cooler.
Warm the system with a repeatable game scene or controlled CPU and GPU workload. Record room temperature, component temperatures, relevant fan speeds and whether the sound is tolerable. Add a rear-top exhaust only if the first test shows heat lingering near the CPU or motherboard and the second test produces a meaningful, repeatable improvement. This is an inference from the measured case, not a universal benchmark.
Before changing hardware
- Shut down, disconnect power and clean filters while supporting fan blades so they do not free-spin.
- Confirm every fan rotates and responds to the intended motherboard header or hub.
- Check the exact airflow arrow, especially on reverse-blade models.
- Remove cable bundles or unused drive cages that directly block the intake path where practical.
- Change one variable at a time and repeat the same test after the system returns to a comparable starting temperature.
Common mistakes
Avoid placing adjacent fans in opposing directions, assuming every top mount must be filled, using an unfiltered bottom intake against carpet, or running every fan at full speed to compensate for a blocked panel. More fan speed can increase turbulence and noise without fixing the restriction. If a layout only works with the side panel removed, investigate the intake rather than immediately buying more fans.
Popular questions
How can I tell which way a PC fan blows?
Look first for molded arrows on the fan frame. If there are none, the open blade side is usually the intake and the side with support struts is usually the exhaust. Reverse-blade models are an exception, so check the model documentation or briefly test with a strip of tissue.
Should a PC have more intake or exhaust fans?
A modest bias toward filtered intake is a practical starting point for dust control, but fan count alone does not determine pressure. Fan speed, size, filters, radiators and panel restriction change delivered airflow. Tune the installed fans and verify temperatures and dust behavior in the actual case.
Should top case fans be intake or exhaust?
Top fans are commonly used as exhaust because that supports a front-to-rear, bottom-to-top flow path. A top intake can work in a case designed for it, but it may pull dust through an unfiltered opening or oppose a tower CPU cooler. Test unusual layouts instead of treating convention as a law.
Are reverse-blade fans intake fans?
Reverse-blade describes the blade geometry and visible presentation, not a permanent intake role. It lets a builder show the unobstructed face while moving air in the opposite direction from a conventional fan. Use the airflow arrow or manufacturer diagram rather than judging by appearance.
How many case fans does a gaming PC need?
There is no universal number. For a conventional ventilated tower, two filtered front intakes and one rear exhaust are a sensible starting experiment. Add or reposition fans only when repeatable CPU, GPU, component or noise measurements show that the current airflow path is inadequate.

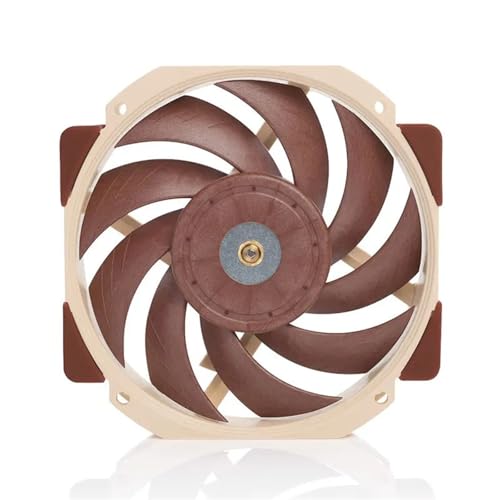

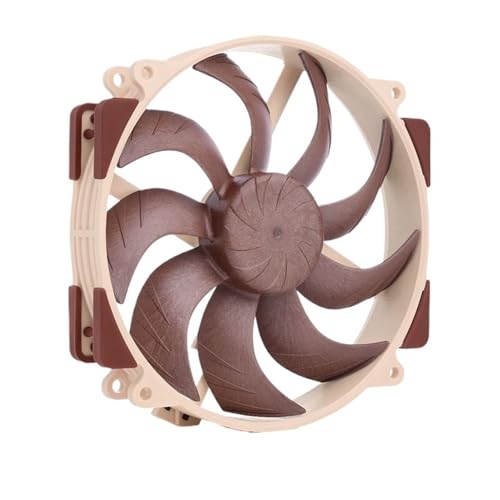

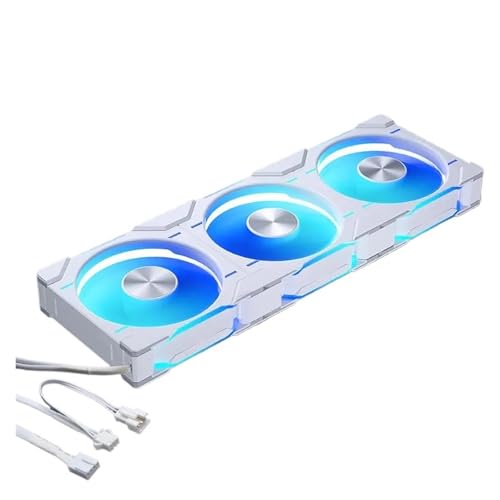

Case fans and cooling parts
